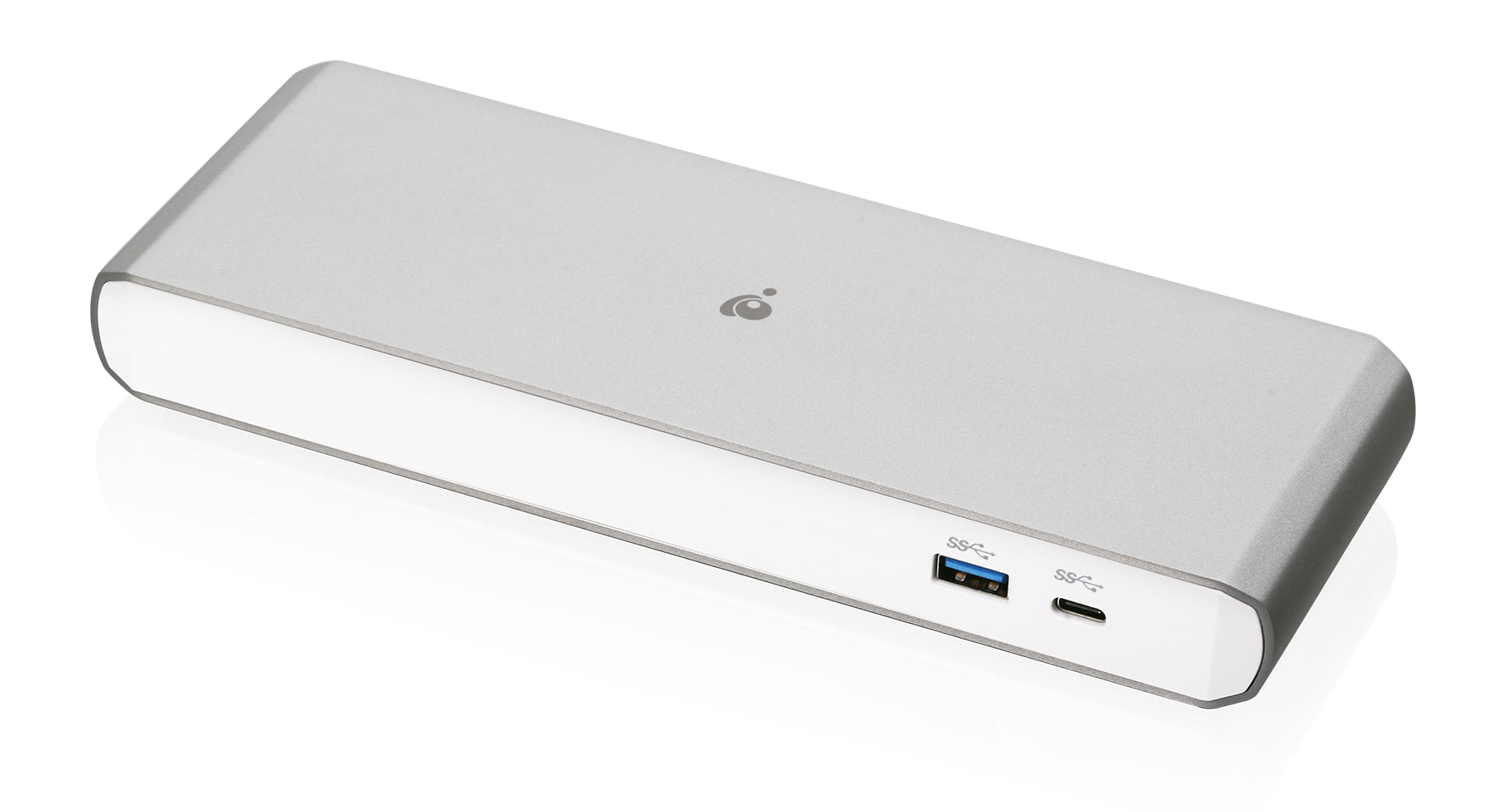

Quantum Thunderbolt 3 Docking Station

More Views

Quantum Thunderbolt 3 Docking Station



UPC: 881317514950 Availability: EOL
  • 5K resolution or dual 4K resolution
  • DisplayPort video output (4K)
  • 15W power delivery via USB-C
  • Thunderbolt 3 / USB-C expansion port
  • 40Gbps data bandwidth
  • USB-C port (USB 3.1 Gen1)
This product is EOL and is no longer being sold.
Click here to learn about the replacement product.

MSRP: $249.95

Where to Buy

Harness the Full Potential of Thunderbolt 3

If you're a business professional, content creator, gamer, or just want to simplify your 4K workspace, your world is about to get faster and simpler. IOGEAR Thunderbolt 3 Docking Station brings unbelievable connectivity to your MacBook Pro or Windows laptop with the included Thunderbolt 3 cable. Use only one cable to charge your laptop, create the ultimate 5K or dual 4K display and transfer unprecedented amounts of data - all at the fastest speeds possible.

Dual 4K or 5K Resolution - Limitless Creativity

Combining the true immersive experience with amazing detail, the IOGEAR Docking Station allows you to connect two 4K displays with nearly 16 million more pixels than an HDTV. This graphical power house also supports the latest generation 5K displays, so you can unravel the astonishing resolution, contrast, and color depth of your photos, videos and applications.

Superhero Transfer Speed – Limitless Freedom

With its phenomenal bandwidth, up to 40Gbps, the IOGEAR Thunderbolt 3 Docking Station allows you to transfer a full 4K movie in under 30 seconds. You can now transfer data 8 times faster than USB 3.0, 80 times faster than USB 2.0 and 50 times faster than Firewire 800! With that kind of speed, you now have everything you need to knock down any connectivity obstacle in your way so you can build the ultimate workstation setup. With its high performance, ease of use and unprecedented speed, Thunderbolt 3 makes the IOGEAR Docking Station a true limitless docking solution.

Single Cable Operation – Limitless Multitasking

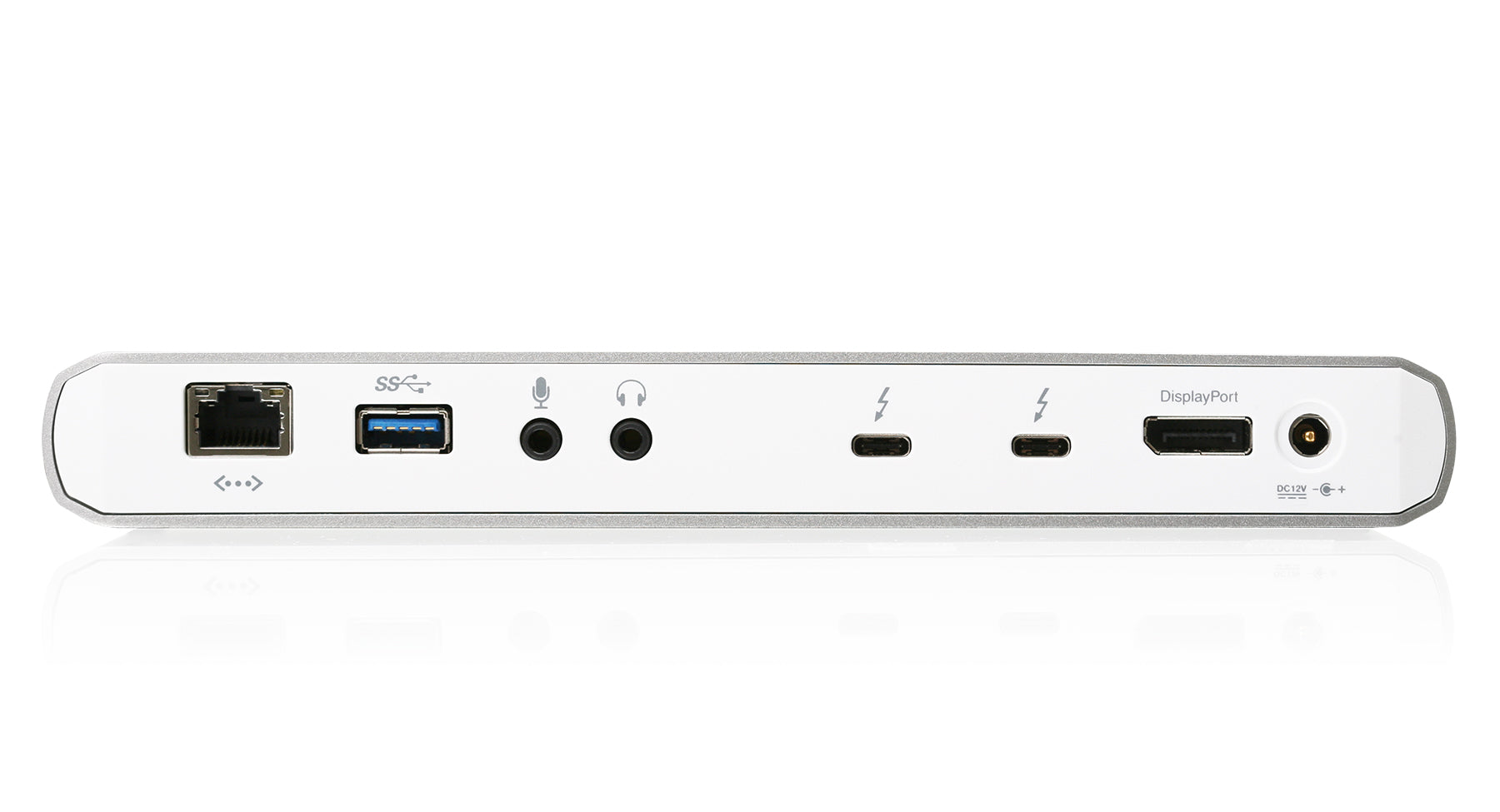

Using the single Thunderbolt 3 cable (included), the docking station provides 5K or dual 4K video, as well as audio, Gigabit Ethernet, USB-C and USB-A ports to accommodate your most demanding computing needs. A Thunderbolt 3 expansion port is also provided to daisy chain up to 5 additional Thunderbolt 3 devices such as Data Storage Device or an external GPU videobox. On top of that, while you are using the docking station, your laptop will charge with up to 15W of power.

Graphic Designers & 3D Animators
Architects & Civil Engineers
Video Editors
  • 5K resolution or dual 4K resolution*
  • Display Port Video Output (4K)
  • 15W Power Delivery via USB-C
  • Thunderbolt 3 / USB-C expansion port
  • 40 Gbps data bandwidth
  • USB-C port (USB 3.1 Gen1)
  • 2 x USB 3.1 Type-A port
  • Gigabit Ethernet Port
  • 3.5mm audio input and output

*Maximum resolution of one 5K or dual 4K is dependent on the capability of the video display and its computer source.

  • Mac: Mac OSX Sierra 10.12 or later, Thunderbolt™ 3 port
  • PC: Windows 10 or later, Thunderbolt™ 3 port
  • Thunderbolt 3 USB-C Enabled computers*

*DP Alt Mode Support

Many Thunderbolt 3 PCs require software and firmware updates to ensure functionalities with Thunderbolt 3 adapters and docking stations.

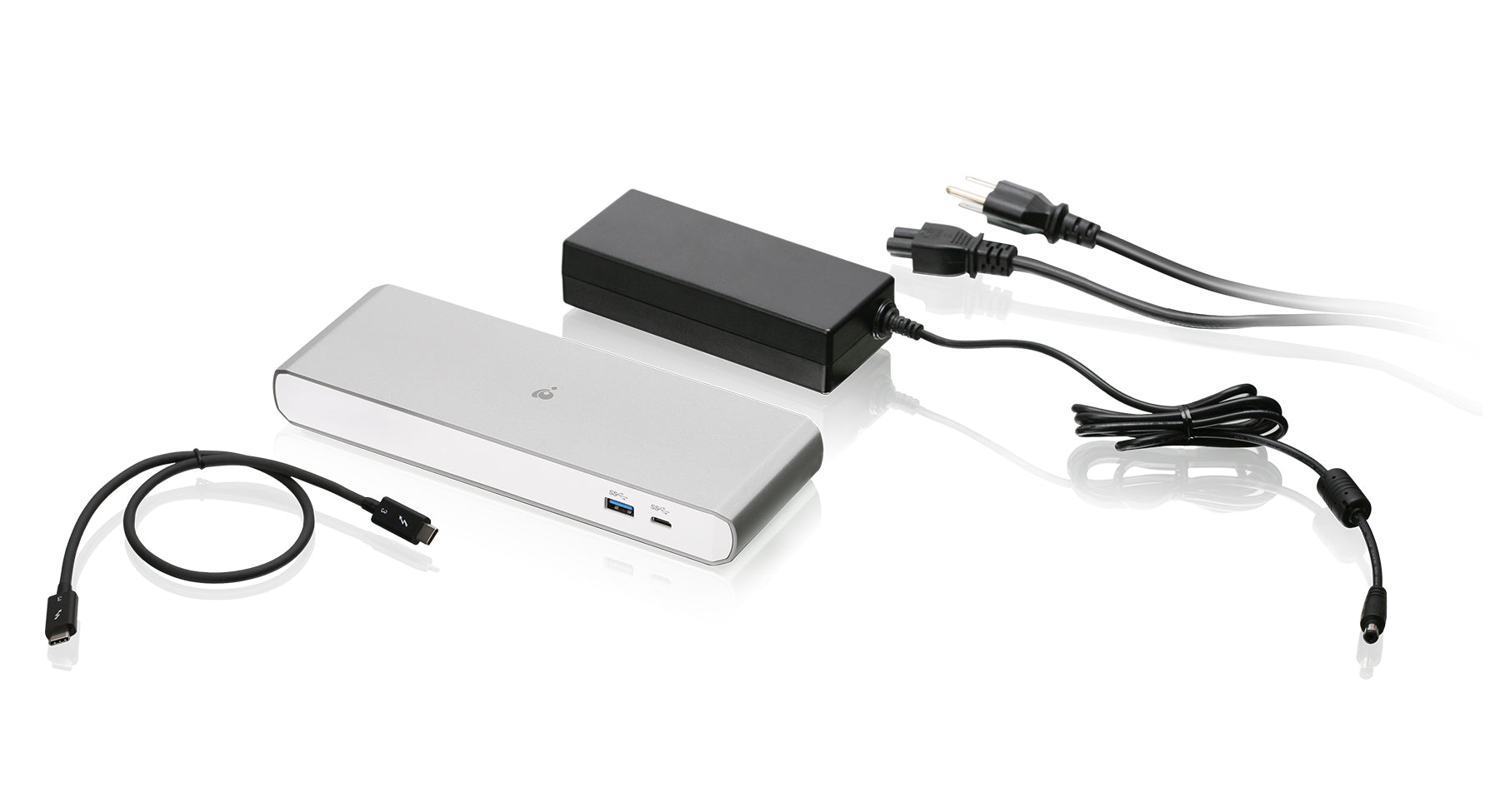

  • 1 x Thunderbolt 3 Docking Station
  • 1 x Thunderbolt 3 Cable 1.5ft (0.5m)
  • 1 x AC Power Adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Carrd
Distributor Part #
Ingram 9V7665
Cable Connections
InputThunderbolt 3 (USB-C)
OutputThunderbolt 3 (USB-C), both TBT3 port can connect to host computer and both support 15W PD
Cable Length1.6ft (0.5m)
Cable TypeThunderbolt 3 (USB-C to USB-C)
Audio Input3.5mm Line-in
Audio Output3.5mm Line-out
Computer SideThunderbolt 3
PowerDC 12V 6A Full Range Power Adapter
USB1 x USB-C (USB 3.1 Gen1), 2 x USB-A (USB 3.1 Gen1)
Video OutputDiplayPort (up to 4096x2160 60Hz) and via Thunderbolt 3 USB-C port (up to 4096x2160 60Hz)
LANGigabit Ethernet
Unit Dimensions
Height1.1" (2.8cm)
Length8.75" (22.2cm)
Depth3.13" (8cm)
Unit Package Dimensions
Height4.5" (11.3cm)
Width9.8" (25cm)
Depth5.12" (13cm)
Master Carton
Height10.6 " (27cm)
Width20.5 " (52cm)
Depth16.5" (42cm)
Master Carton Qty.12
Master Carton Wt.35 lbs (15.8kgs)
Unit Pack Wt.2.7 lb (1.22kgs)
Unit Wt.1 lb (0.45kgs)
