USB-C 8K Nano Dock Pro
MPN: UPC: 881317521569
GUD3C8K2P
- 6-in-1 Travel-size USB-C docking station for mobile professionals
- Charge laptop & devices with up to 100W pass-through*
- Up to 8K in single display mode or up to 4K in dual display mode
MSRP: $69.95
- 6-in-1 Travel-size USB-C docking station for mobile professionals
- Charge laptop & devices with up to 100W pass-through*
- Up to 8K in single display mode or up to 4K in dual display mode
- 13" inch cable

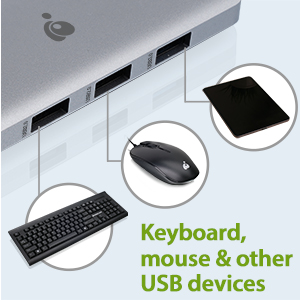

- 1x USB-A 3.0 ports; 2x USB-A 2.0 ports
- Compatible with Thunderbolt 3/4 (USB-C) laptops & tablets
- Rugged aluminum housing
- Works with the new USB-C iPad Pro under mirror-mode
* Maximum of up to 85W of power can be delivered to the laptop after deduction of 15W used by the docking station. Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply. Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-15W = 45W. If your power supply is 87W, then the maximum power can be delivered to the laptop is 87W-15W= 60W.
- USB-C compatible laptops with DP Alt-Mode support
- USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Through Function
- Compatible with USB-C and Thunderbolt 3/4 laptops
- OS Support
- Windows 10,11
- macOS 13+ (MST is not supported by Mac OS)
- iPadOS 15+
1x GUD3C8K2P
1x QSG
1x Warranty Card
| Function | GUD3C8K2P |
|---|---|
| Cable Length | 13" (33 cm) |
| Cable Connections | |
| Input | USB-C Host |
| Connectors | |
| Power | USB-C PD 3.0 up to 100W |
| USB-A | 2x USB 2.0, 1x USB 3.0 (5Gbps) |
| Video Output | 1x HDMI (8K @ 30Hz) 1x HDMI (4K @ 30Hz) |
| Dimensions | GUD3C8K2P |
|---|---|
| Unit Dimensions | |
| Height | 0.5" (1.3 cm) |
| Length | Base: 3.9" (10.1 cm) Cable: 13" (33 cm) |
| Width | 1.5" in (4 cm) |
| Inner Pack | |
| Height | 4.5" (11.6 cm) |
| Length | 9.64" (24.5 cm) |
| Width | 6.2" (16 cm) |
| Inner Pack Qty. | 6 pcs |
| Unit Package Dimensions | |
| Height | 3" (7.62 cm) |
| Length | 6" (15.24 cm) |
| Width | 2" (5.08 cm) |
| Master Carton | |
| Height | 10" (25.5 cm) |
| Length | 13.3" (34 cm) |
| Width | 10.4" (26.5 cm) |
| Master Carton Qty. | 24 pcs |
| Weight | |
| Master Carton Wt. | 9.5 lbs (4.32 kgs) |
| Inner Pack Wt. | 2.15 lbs (0.98 kgs) |
| Unit Pack Wt. | 0.3 lbs (0.12 kgs) |
| Unit Wt. | 0.15 lbs (0.08 kg) |
